CRYOGENIC NITROGEN

High Performance Cryogenic Nitrogen Plants

Maximize Efficiency, Maximize Production

SPECIFICATIONS

Explore IMTEK Cryogenics

High - Performance Nitrogen Solutions

Engineered for supremacy, our high-capacity cryogenic systems set the standard in innovation, offering expansive performance and unrivaled efficiency for industrial applications.

Download Brochure

Liquid Nitrogen Generator

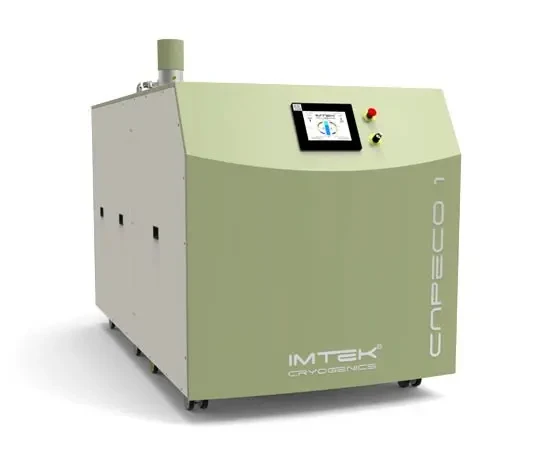

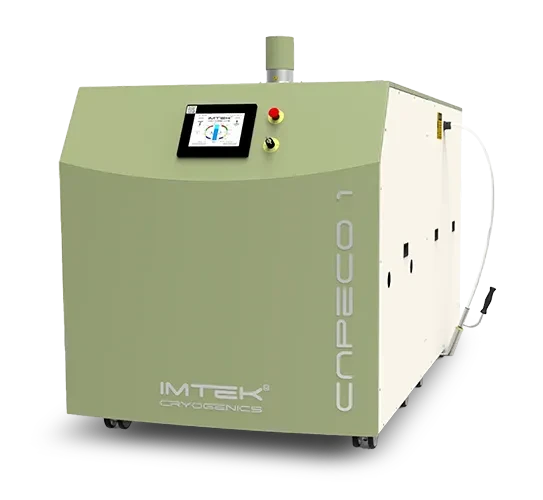

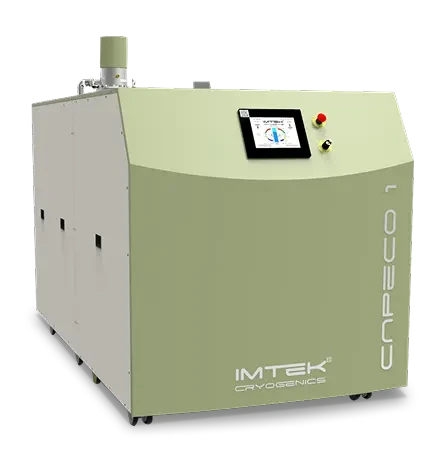

Cryogenic Nitrogen Plant - CNP ECO 1

Req. External Air Compressor + Water Chiller

Production Rate

≥240 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 250 liters
Higher Capacity Storage Options: 500 liters

Power Consumption

13.2 kW @50Hz
13.8 kW @60Hz

Operating Pressure

1-5 bar

Cooling Water Flow Rate

12-18 L/min.

Compressed Air Requirement

External Compressor ~30m3/hour @7bar

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

32 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

1240 x 1780 x 1440 mm

Weight

750 kg

Download Brochure

Liquid Nitrogen Generator

Cryogenic Nitrogen Plant - CNP ECO 2

Req. External Air Compressor + Water Chiller

Production Rate

≥480 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 500 liters

Higher Capacity Storage Options: 1000 liters

Power Consumption

26.4 kW @50Hz
27.6 kW @60Hz

Operating Pressure

1-5 bar

Cooling Water Flow Rate

24-36 L/min.

Compressed Air Requirement

External Compressor ~60m3/hour @7bar

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

64 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

1240x3300x1440 mm

Weight

1000 kg
Download Brochure

Liquid Nitrogen Generator

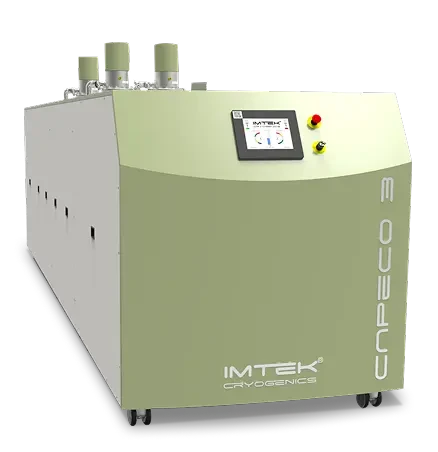

Cryogenic Nitrogen Plant - CNP ECO 3

Req. External Air Compressor + Water Chiller

Production Rate

≥720 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 1000 liters
Higher Capacity Storage Options: 1500 liters

Power Consumption

39.6 kW @50Hz

41.7 kW @60Hz

Operating Pressure

1-5 bar

Cooling Water Flow Rate

36-54 L/min.

Compressed Air Requirement

External Compressor ~90m3/hour @7bar

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

96 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

1240x3600x1440mm

Weight

1300 kg
Download Brochure

Liquid Nitrogen Generator

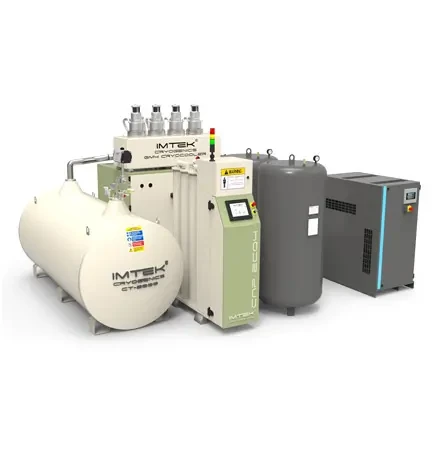

Cryogenic Nitrogen Plant - CNP ECO 4C & ECO 4

Req. Water Chiller

Production Rate

≥960 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration:
ECO4 Compact : 1000 liters
ECO4 : 2000 liters
Higher Capacity Storage Options
ECO4 Compact : 1500 liters
ECO4 : 3000/4000 liters

Power Consumption

63 kW @50Hz, 67 kW @60Hz without chiller

Operating Pressure

1-5 bar

Cooling Water Flow Rate

4400 L/h

Compressed Air Requirement

External Compressor ~120m3/hour @7bar

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

128 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

ECO4 Compact : 1240x4500x1440mm
ECO4 : 4300x4300x2100mm

Weight

ECO4 C : 2500 kg / ECO4 : 3600 kg
Download Brochure

Liquid Nitrogen Generator

Cryogenic Nitrogen Plant - CNP ECO 8

Req. Water Chiller

Production Rate

≥ 1920 liters/day (≥80 liters/hour) @ 50 Hz

Purity

≥99 %

Power Consumption

122 kW@ 50Hz / 130 kW@ 60Hz

Operating Pressure

1-5 bar

Cooling Water Flow Rate

2000/3000/4000 liters

Compressed Air Requirement

380/400/415VAC, 3Ph, 50Hz or 480VAC, 3 Ph, 60 Hz

Noise Level

Low noise level < 65 dB @ 1 meter

Dimensions (W x L x H)

4.3 m (W) x 4.7 m (L) x 2.1 m (H)

Suggested Installation Area (W x L x H)

5.8m (W) x 6.5 m (L) x 3m (H)

Maximum Altitude

4 500 meters

Weight

4520 kg

REMOTE CONNECTION OPTION

Intelligent Automation at Your Fingertips

Our PLC screens ensure optimal performance with real-time monitoring and control, while remote operation via iPad provides unparalleled convenience and flexibility.

SAVINGS CALCULATOR

Maximize Efficiency, Minimize Costs: Calculate Your Nitrogen Savings

Discover your potential savings with our innovative ROI calculator for purchasing a liquid nitrogen generator. Our state-of-the-art analysis tool integrates your nitrogen consumption, LN2 costs, and suggested generator parameters to provide a comprehensive financial report. Leave the cost justifications, detailed analyses, and complex calculations to IMTEK—experience seamless savings and efficiency optimization with ease.
Calculate from

How much liquid nitrogen do you use daily?

Estimate your average use in liters per day

What is your current price per liter of LN₂

Leave blank if unsure – we'll use an average market rate





Your local electricity rate (per kWh)

Used to compare generator operating cost vs supplier

Intended Use

This helps you tailor the response and system recommendation

Monthly Delivery Cost

Do you pay extra for delivery or storage?

Contact Info





MAKE IT YOURS

Customize Your Cryo-Plant Experience

Our ‘Build Your Own’ section is more than a tool—it’s your first step towards a cryogenic solution that not only meets but exceeds expectations.

With every choice, you’re engineering a future with efficiency, reliability, and innovation converge. Begin your journey to crafting a cryogenic system that is truly yours.
