CRYOGENIC NITROGEN

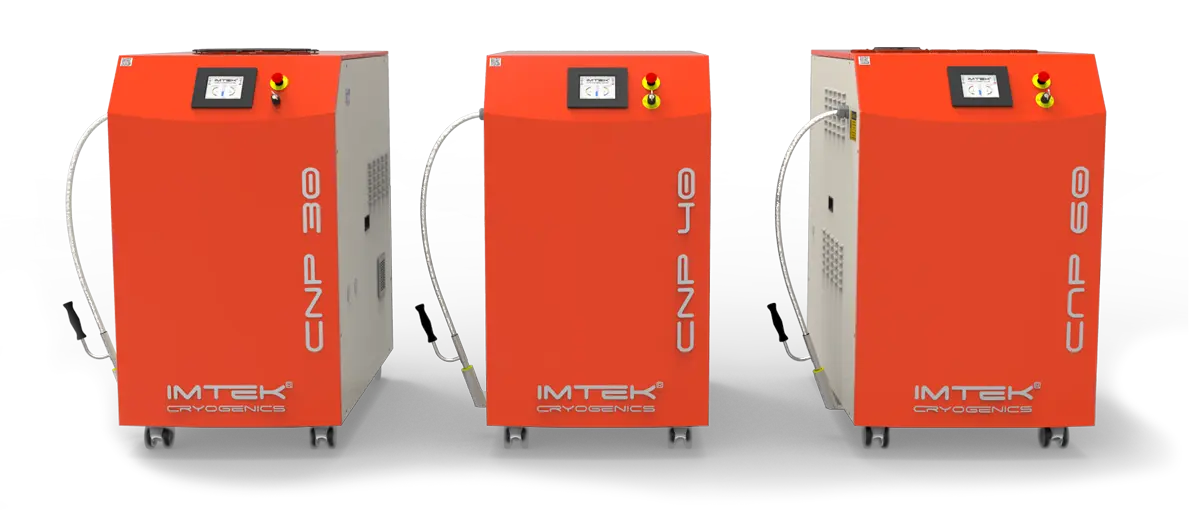

Mid-Range Cryogenic Nitrogen Plants

Compact Power, Single Phase Precision

SPECIFICATIONS

Advanced Performance, Ready for Innovation

Download Brochure

Liquid Nitrogen Generator

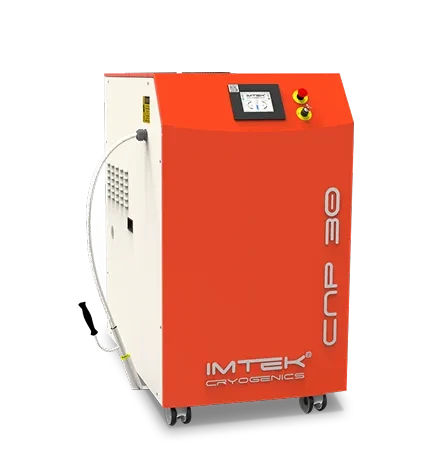

Cryogenic Nitrogen Plant - CNP 30

Air Cooled / Water Cooled

Production Rate

≥30 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 60 L
Higher Capacity Storage Options: 80 L

Power Consumption

4.2 kW @50Hz
5.2 kW @60Hz

Operating Pressure

1.9 bar

Cooling Water Flow Rate

4-9 L/min

Compressed Air Requirement

Built-in Air Compressor

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

25 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

765 x 1340 x 1380 mm

Weight

350 Kg

Download Brochure

Liquid Nitrogen Generator

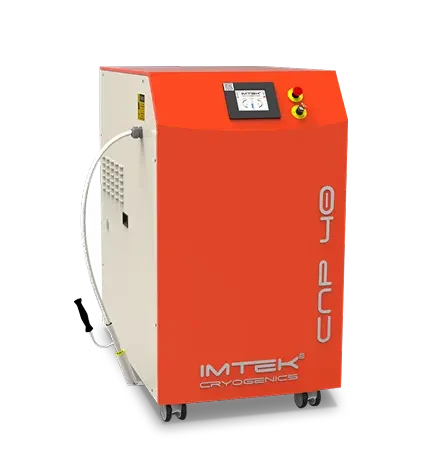

Cryogenic Nitrogen Plant - CNP 40

Air Cooled / Water Cooled

Production Rate

≥40 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 80 L
Higher Capacity Storage Options: 120 L – 160 L

Power Consumption

4.2 kW @50Hz
5.2 kW @60Hz

Operating Pressure

1.9 bar

Cooling Water Flow Rate

4-9 L/min

Compressed Air Requirement

Built-in Air Compressor

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

25 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

765 x 1340 x 1380 mm (60 – 80 L)
825 x 1350 x 1380 mm (120 – 160 L)

Weight

350 Kg

Download Brochure

Liquid Nitrogen Generator

Cryogenic Nitrogen Plant - CNP 60

Water Cooled

Production Rate

≥60 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 120 L
Higher Capacity Storage Options: 160 L – 210 L

Power Consumption

7.2 kW @50Hz
8.1 kW @60Hz

Operating Pressure

1.9 bar

Cooling Water Flow Rate

6-9 L/min

Compressed Air Requirement

Built-in Air Compressor

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

32 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

825 x 1350 x 1380 mm

Weight

350 Kg

Download Brochure

Liquid Nitrogen Generator

Cryogenic Nitrogen Plant - CNP 65

Water Cooled

Production Rate

≥65 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 120 L
Higher Capacity Storage Options: 160 L – 210 L

Power Consumption

7.2 kW @50Hz
8.1 kW @60Hz

Operating Pressure

1.9 bar

Cooling Water Flow Rate

External Chiller – 6-9 L/min

Compressed Air Requirement

Built-in Air Compressor

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

32 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

825 x 1350 x 1380 mm

Weight

350 Kg

Liquid Nitrogen Generator

Cryogenic Nitrogen Plant - CNP 65

External Air Compressor

Production Rate

≥65 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 160 L
Higher Capacity Storage Options: 210 L

Power Consumption

7.2 kW @50Hz
8.1 kW @60Hz

Operating Pressure

1.9 bar

Cooling Water Flow Rate

External Air-Compressor – 8m3/hr

Compressed Air Requirement

Built-in Air Compressor

Electrical Rating

380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

32 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

870 x 1667 x 1380 mm

Weight

350 Kg

Download Brochure

Liquid Nitrogen Generator

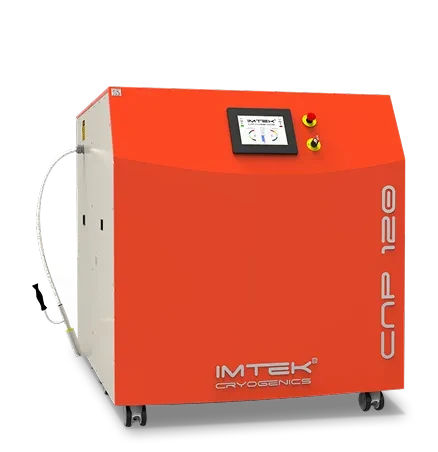

Cryogenic Nitrogen Plant - CNP 120

Req. External Air Compressor + Water Chiller

Production Rate

≥120 liters/day

Purity

≥99 %

Storage Capacity

Standard Configuration: 250 liters

Higher Capacity Storage Options: 500 liters

Power Consumption

13.2 kW @50Hz
13.8 kW @60Hz

Operating Pressure

1-5 bar

Cooling Water Flow Rate

12-18 L/min.

Compressed Air Requirement

External Compressor ~15m3/hour @7bar

Electrical Rating

380-415 V (±10%) @50Hz V3~

480 V (±10%) @60Hz V3~

Reccomended Circuit Breaker

32 A, C-Type

Noise Level

≤65 dBA

Dimensions (W x L x H)

1240x1780x1380 mm

Weight

4520 kg

SAFETY

Safety by Design: Enclosed Components, Low-Pressure Efficiency

Safety is at the core of IMTEK Cryogenics’ design philosophy. Our systems feature encased components for maximum protection and operate at low pressures of 1.5-2 bars to reduce wear and enhance stability—ensuring a secure, low-maintenance operation.

SAVINGS CALCULATOR

Maximize Efficiency, Minimize Costs: Calculate Your Nitrogen Savings

Discover your potential savings with our innovative ROI calculator for purchasing a liquid nitrogen generator. Our state-of-the-art analysis tool integrates your nitrogen consumption, LN2 costs, and suggested generator parameters to provide a comprehensive financial report. Leave the cost justifications, detailed analyses, and complex calculations to IMTEK—experience seamless savings and efficiency optimization with ease.
Calculate from

How much liquid nitrogen do you use daily?

Estimate your average use in liters per day

What is your current price per liter of LN₂

Leave blank if unsure – we'll use an average market rate





Your local electricity rate (per kWh)

Used to compare generator operating cost vs supplier

Intended Use

This helps you tailor the response and system recommendation

Monthly Delivery Cost

Do you pay extra for delivery or storage?

Contact Info





MAKE IT YOURS

Customize Your Cryo-Plant Experience

Our ‘Build Your Own’ section is more than a tool—it’s your first step towards a cryogenic solution that not only meets but exceeds expectations.
With every choice, you’re engineering a future with efficiency, reliability, and innovation converge. Begin your journey to crafting a cryogenic system that is truly yours.
