SPECIFICATIONS
CRYOGENIC NITROGEN

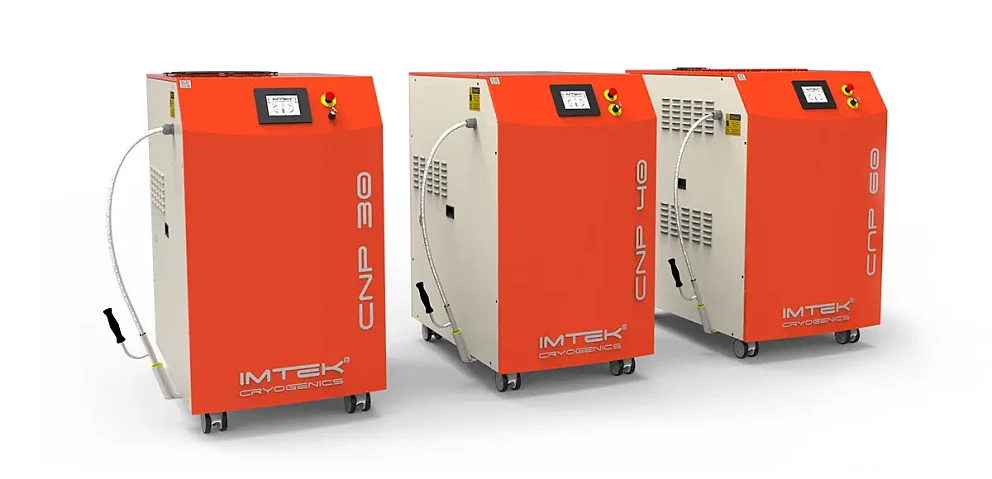

Mid-Range Cryogenic
Nitrogen Plants
Compact Power, Single Phase Precision
Liquid Nitrogen Generator

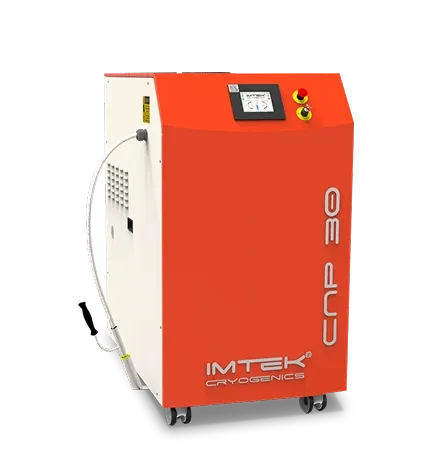

Cryogenic Nitrogen Plant - CNP 30
Air Cooled / Water Cooled
Production Rate
≥30 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 60 L
Higher Capacity Storage Options: 80 L
Power Consumption
4.2 kW @50Hz
5.2 kW @60Hz
Operating Pressure
1.9 bar
Cooling Water Flow Rate
4-9 L/min
Compressed Air Requirement
Built-in Air Compressor
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
25 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
765 x 1340 x 1380 mm
Weight
350 Kg
Liquid Nitrogen Generator
Cryogenic Nitrogen Plant - CNP 40
Air Cooled / Water Cooled
Production Rate
≥40 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 80 L
Higher Capacity Storage Options: 120 L - 160 L
Power Consumption
4.2 kW @50Hz
5.2 kW @60Hz
Operating Pressure
1.9 bar
Cooling Water Flow Rate
4-9 L/min
Compressed Air Requirement
Built-in Air Compressor
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
25 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
765 x 1340 x 1380 mm (60 - 80 L)
825 x 1350 x 1380 mm (120 - 160 L)
Weight
350 Kg
Liquid Nitrogen Generator

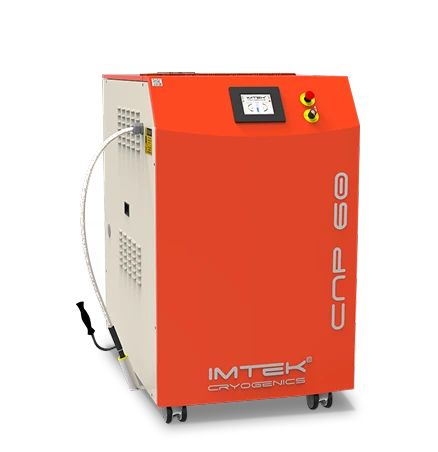

Cryogenic Nitrogen Plant - CNP 60
Water Cooled
Production Rate
≥60 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 120 L
Higher Capacity Storage Options: 160 L - 210 L
Power Consumption
7.2 kW @50Hz
8.1 kW @60Hz
Operating Pressure
1.9 bar
Cooling Water Flow Rate
6-9 L/min
Compressed Air Requirement
Built-in Air Compressor
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
825 x 1350 x 1380 mm
Weight
350 Kg
Liquid Nitrogen Generator
Cryogenic Nitrogen Plant - CNP 65
Water Cooled
Production Rate
≥65 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 120 L
Higher Capacity Storage Options: 160 L - 210 L
Power Consumption
7.2 kW @50Hz
8.1 kW @60Hz
Operating Pressure
1.9 bar
Cooling Water Flow Rate
External Chiller - 6-9 L/min
Compressed Air Requirement
Built-in Air Compressor
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
825 x 1350 x 1380 mm
Weight
350 Kg
Liquid Nitrogen Generator
Cryogenic Nitrogen Plant - CNP 65
External Air Compressor
Production Rate
≥65 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 160 L
Higher Capacity Storage Options: 210 L
Power Consumption
7.2 kW @50Hz
8.1 kW @60Hz
Operating Pressure
1.9 bar
Cooling Water Flow Rate
External Air-Compressor - 8m3/hr
Compressed Air Requirement
Built-in Air Compressor
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
870 x 1667 x 1380 mm
Weight
350 Kg
SAVINGS CALCULATOR
Maximize Efficiency, Minimize Costs: Calculate Your Nitrogen Savings
Discover your potential savings with our innovative ROI calculator for purchasing a liquid nitrogen generator. Our state-of-the-art analysis tool integrates your nitrogen consumption, LN2 costs, and suggested generator parameters to provide a comprehensive financial report. Leave the cost justifications, detailed analyses, and complex calculations to IMTEK—experience seamless savings and efficiency optimization with ease.

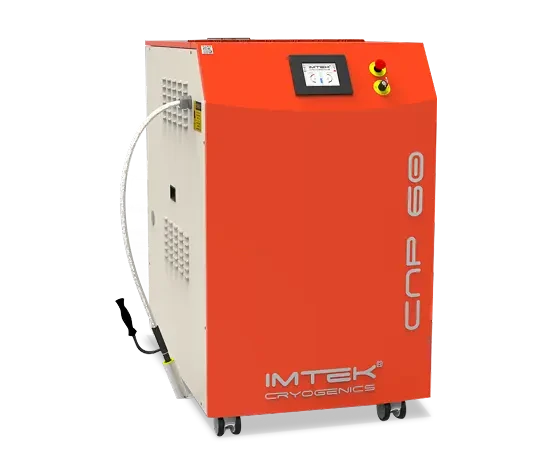

MAKE IT YOURS
Customize Your Cryo-Plant Experience
Our 'Build Your Own' section is more than a tool—it's your first step towards a cryogenic solution that not only meets but exceeds expectations.
With every choice, you're engineering a future with efficiency, reliability, and innovation converge. Begin your journey to crafting a cryogenic system that is truly yours.
